Integration with JetBackup 5

This guide will walk you through the steps to integrate your JetBackup Premium Cloud Storage with JetBackup 5. By the end, you’ll have a fully configured backup destination ready to use. The steps include:

• Creating a bucket for backup storage

• Creating a user to access the storage from your server

• Setting up a bucket policy and assigning it to the user

• Generating access keys for the user

• Adding the storage destination in JetBackup 5 and assigning it to a backup job

Regions Endpoints URLS:

eu-central-2.storage.jetbackup.com
eu-west-1.storage.jetbackup.com
eu-east-1.storage.jetbackup.com

Step 1:

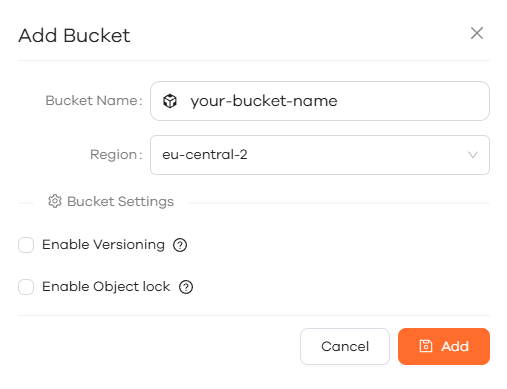

Adding a bucket

1. Add a bucket, use a name to represent the server

2. Do not enable Bucket Versioning / Object Lock

Step 2:

Create a user for the server

1. Use a strong password from a Password Generator for security. Please note that you don’t need to save the password, we will not use it

Step 3:

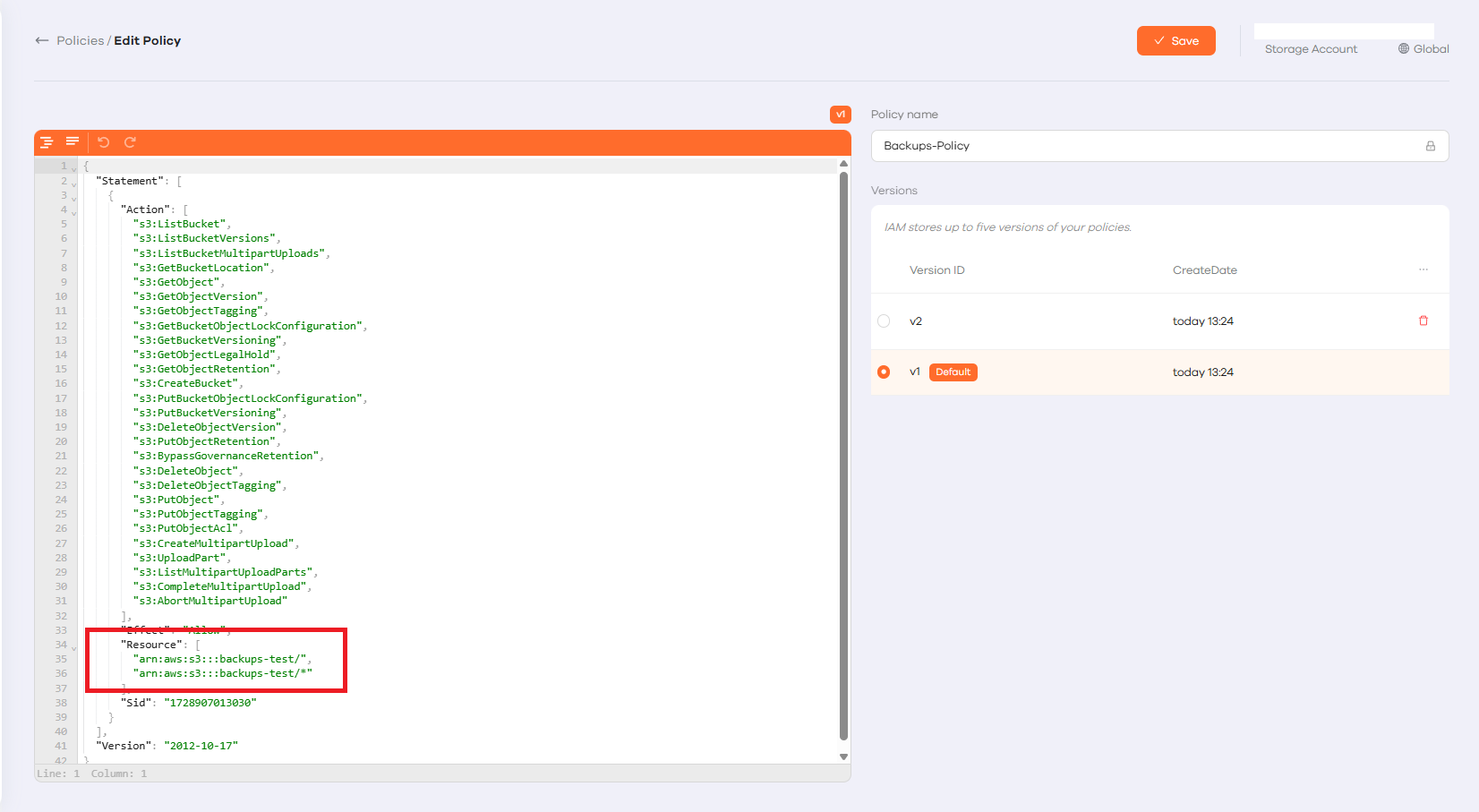

Add a Bucket Policy

1. Create a policy for the bucket. Use the server name for the policy name
   • Policy template: Make sure to replace BUCKET_NAME in the “Resource” section below.

{
"Statement": [
{
"Action": [
    "s3:ListBucket",
    "s3:ListBucketVersions",
    "s3:ListBucketMultipartUploads",
    "s3:GetBucketLocation",
    "s3:GetObject",
    "s3:GetObjectVersion",
    "s3:GetObjectTagging",
    "s3:GetBucketObjectLockConfiguration",
    "s3:GetBucketVersioning",
    "s3:GetObjectLegalHold",
    "s3:GetObjectRetention",
    "s3:CreateBucket",
    "s3:PutBucketObjectLockConfiguration",
    "s3:PutBucketVersioning",
    "s3:DeleteObjectVersion",
    "s3:PutObjectRetention",
    "s3:BypassGovernanceRetention",
    "s3:DeleteObject",
    "s3:DeleteObjectTagging",
    "s3:PutObject",
    "s3:PutObjectTagging",
    "s3:PutObjectAcl",
    "s3:CreateMultipartUpload",
    "s3:UploadPart",
    "s3:ListMultipartUploadParts",
    "s3:CompleteMultipartUpload",
    "s3:AbortMultipartUpload"
],
"Effect": "Allow",
"Resource": [
    "arn:aws:s3:::BUCKET_NAME",
    "arn:aws:s3:::BUCKET_NAME/*"
],
"Sid": "1728907013030"
}
],
"Version": "2012-10-17"
}

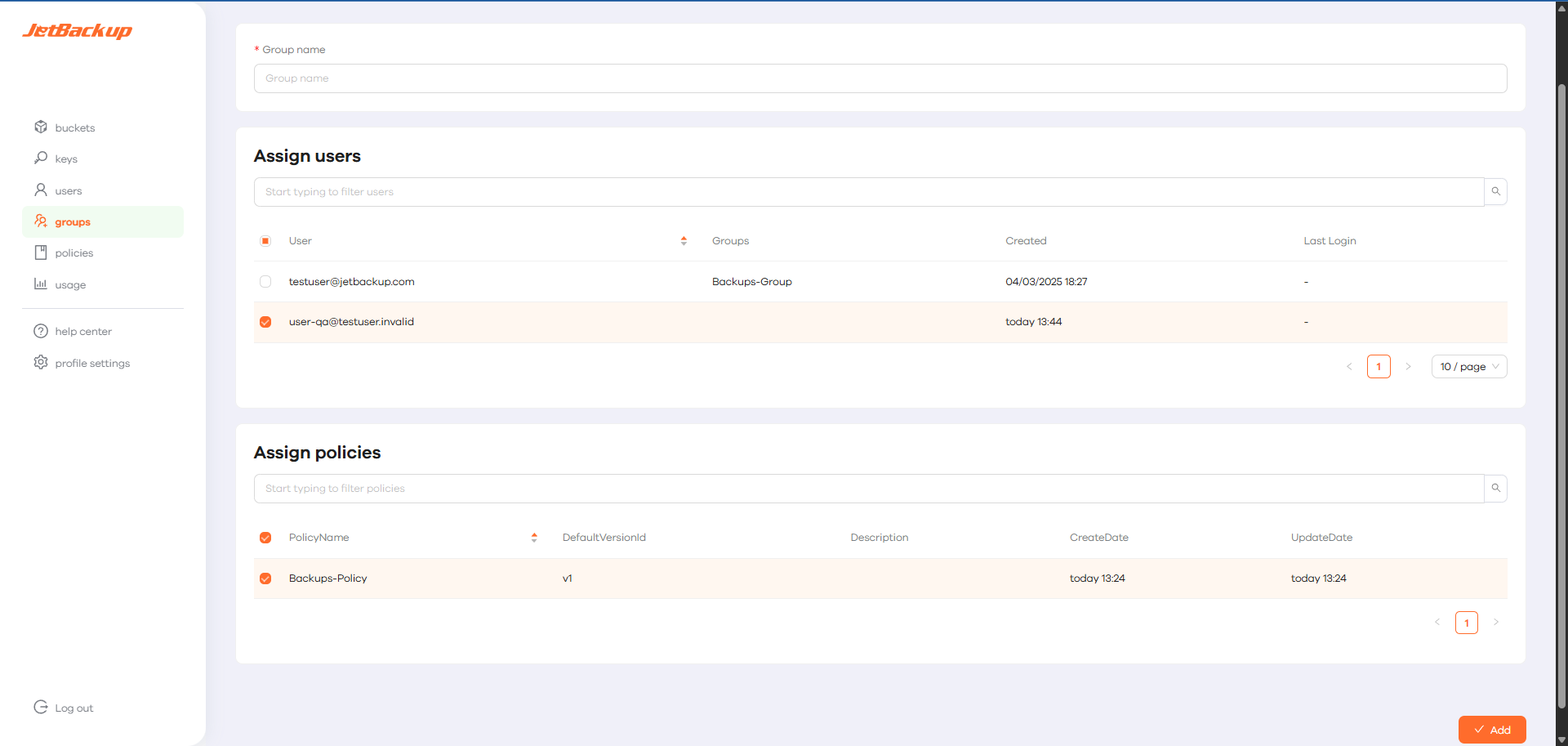

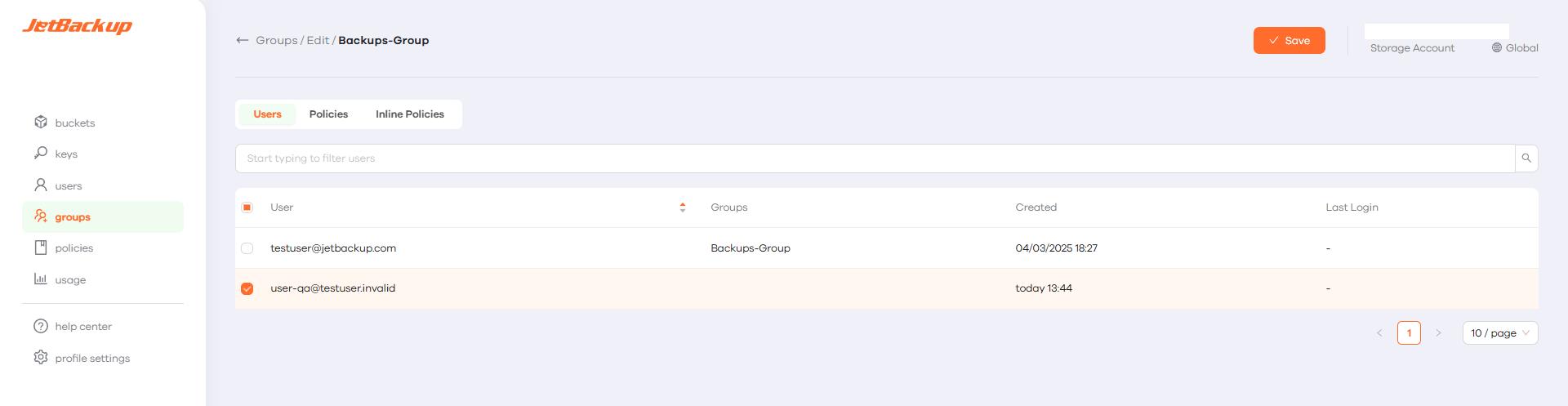

2. Create a group, then assign the previously created user and policy to the group.

3. Return to Groups, click Edit and verify that both user and policy are assigned to the group.

Step 4:

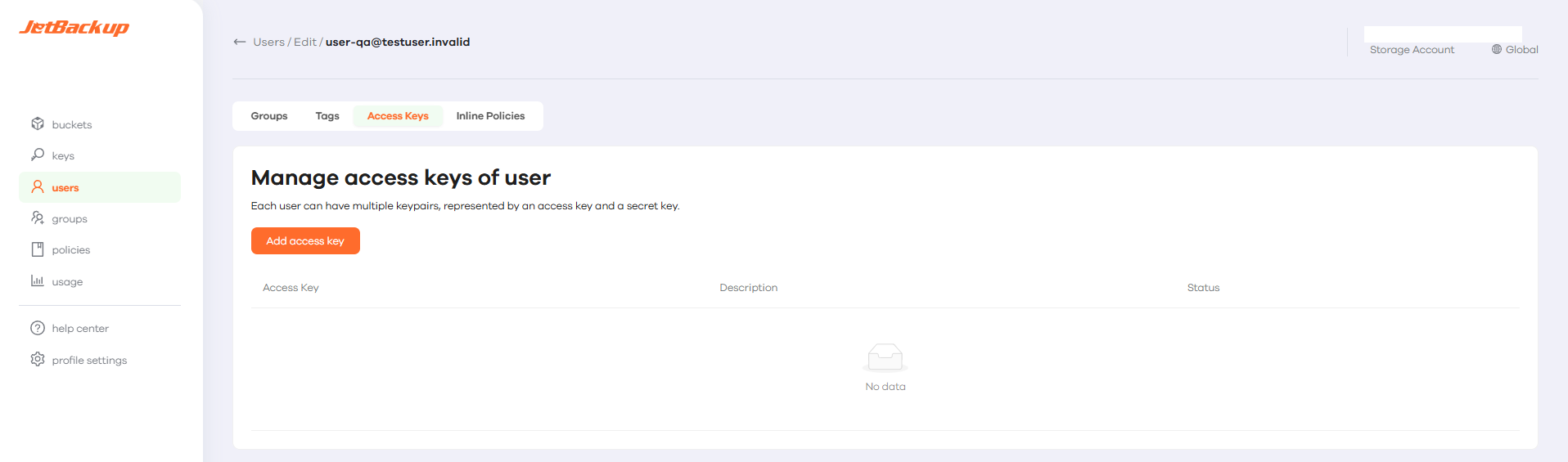

Create an access key for the user

1. Navigate to the Users tab, click Edit, and then select Access Keys. From this page, you can generate a new Access Key for the user.

2. Save the Access Keys in a secure location, as they cannot be retrieved once lost.

Step 5:

Adding the destination in JetBackup 5

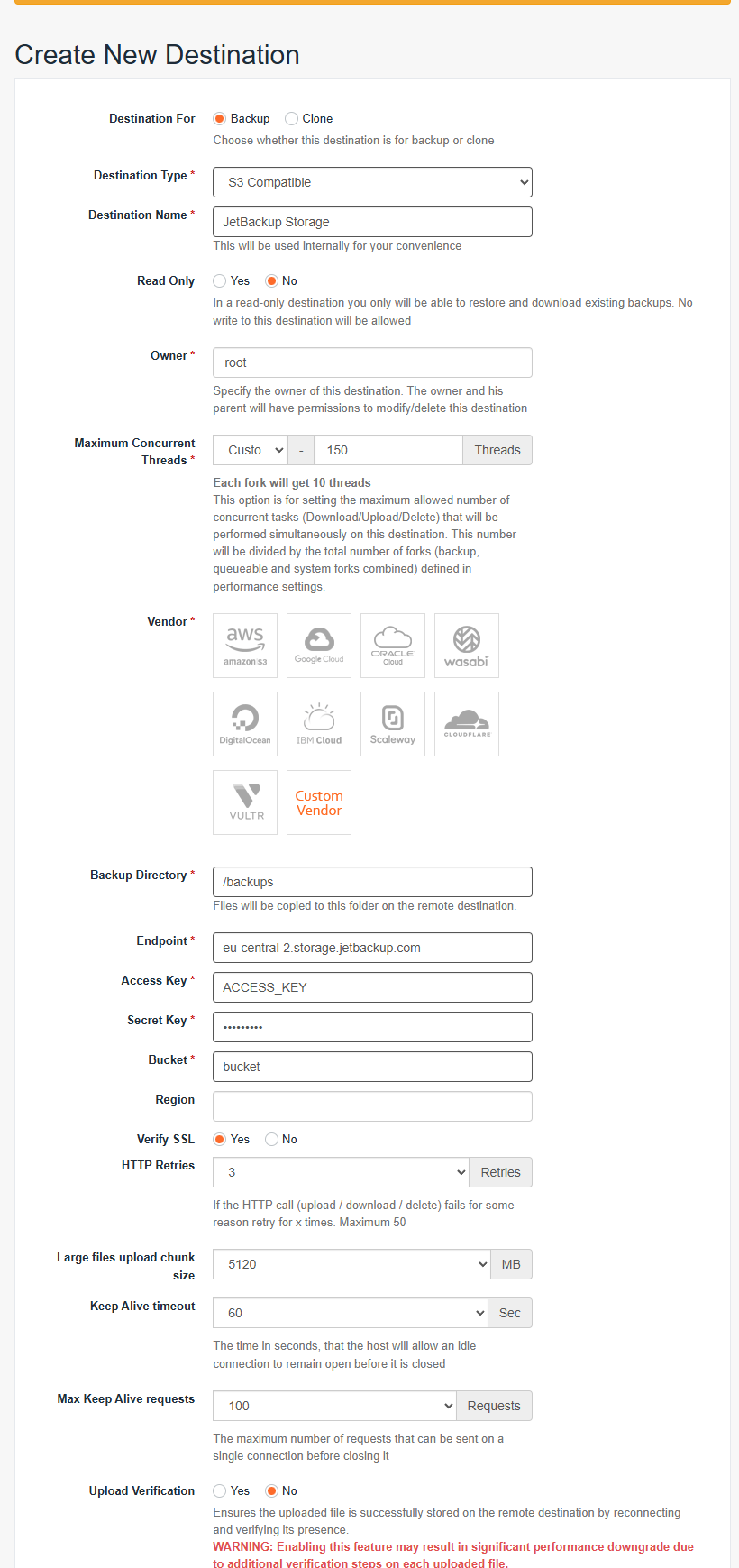

1. Open JetBackup 5 and navigate to Destinations > “+ Create New Destination”

2. Enter the JetBackup Storage credentials

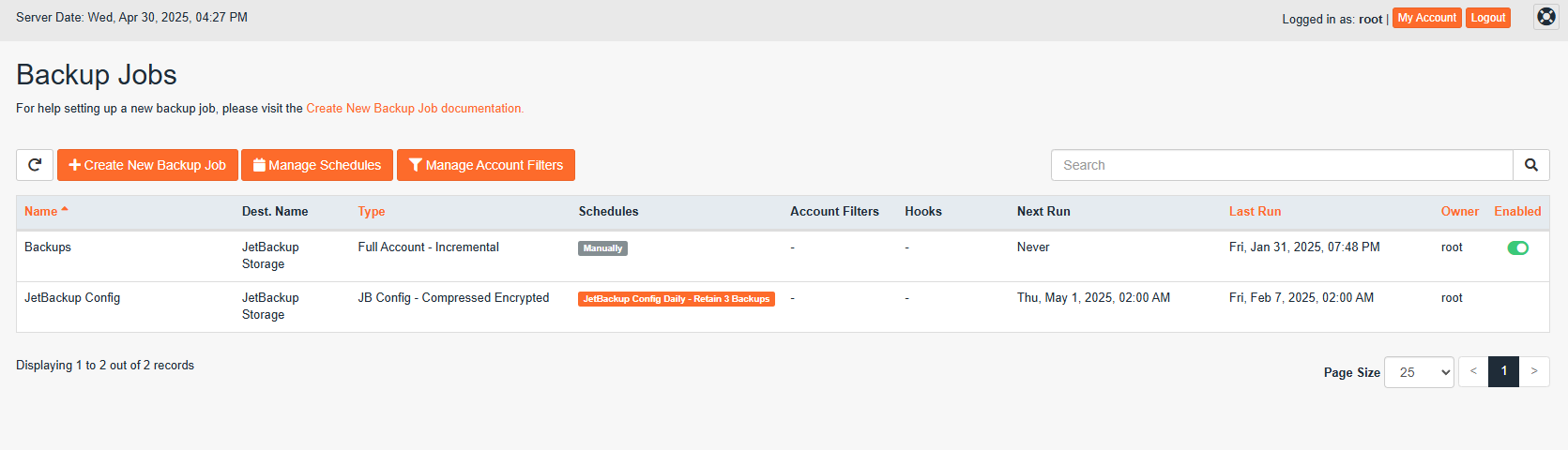

3. Lastly, assign the destination to your backup jobs.

Your backups will now be stored to your JetBackup Premium Cloud Storage!
